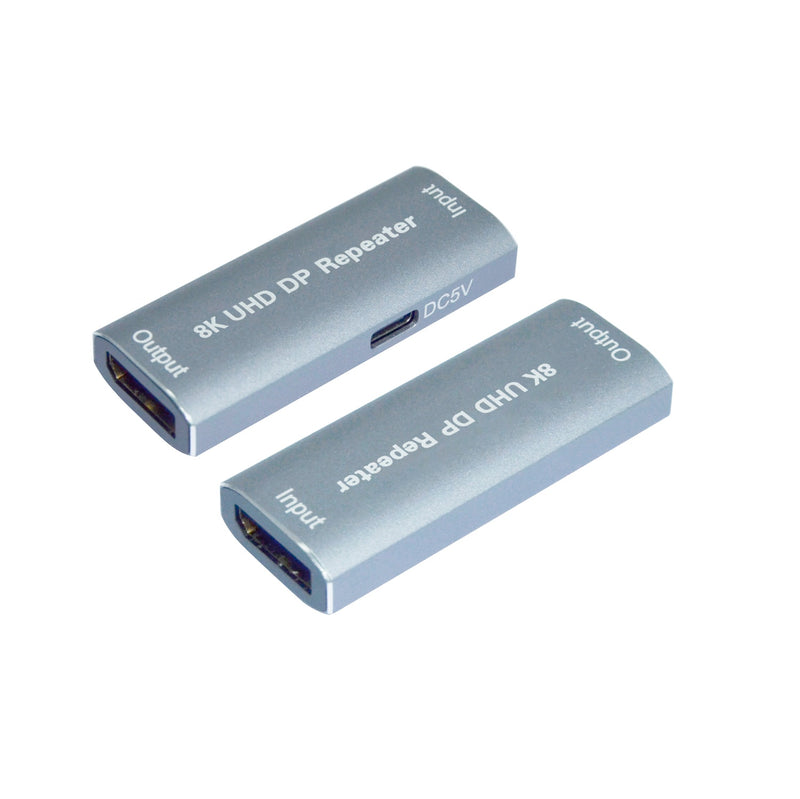

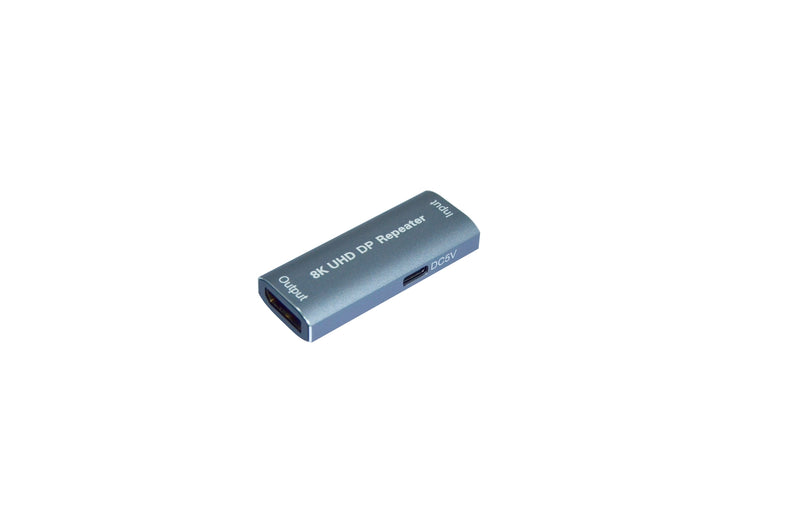

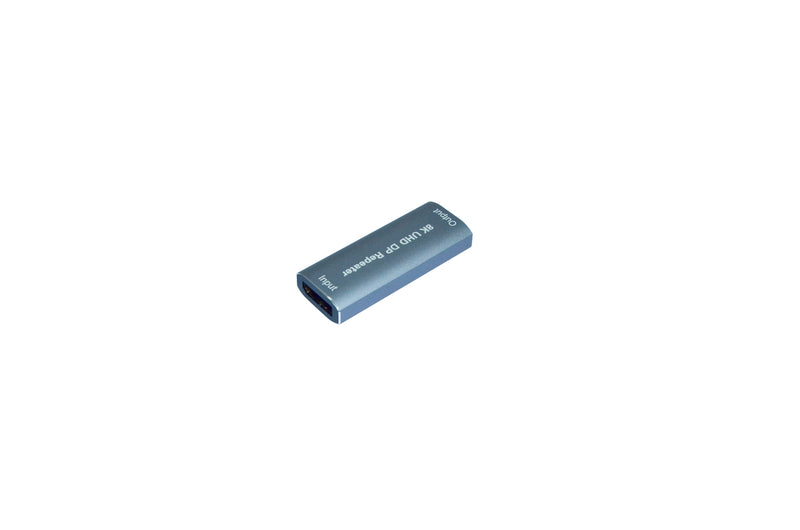

NÖRDIC DisplayPort 1.4 signal amplifier allows you to extend a Displayport connection to allow up to 20 meters of DP connection without signal loss. The adapter supports up to Displayport 1.4 and is backward compatible with previous versions. Supports resolutions up to 8K60Hz or 4K120Hz HDR (cables not included). Supports a maximum bandwidth of up to 32.4 Gbps HBR3 and also DSC 1.2 as well as HDCP 2.2. The adapter supports color formats RGB, 4:4:4, 4:2:2, 4:2:0 and up to 10bpc. Maximum length of DP cable for input is 10 meters and maximum output length is 10 meters. Graphics card and monitor must support DSC to achieve higher resolutions, see manual. The amplifier is powered by the supplied 5V mains cable. No drivers required, plug and play.

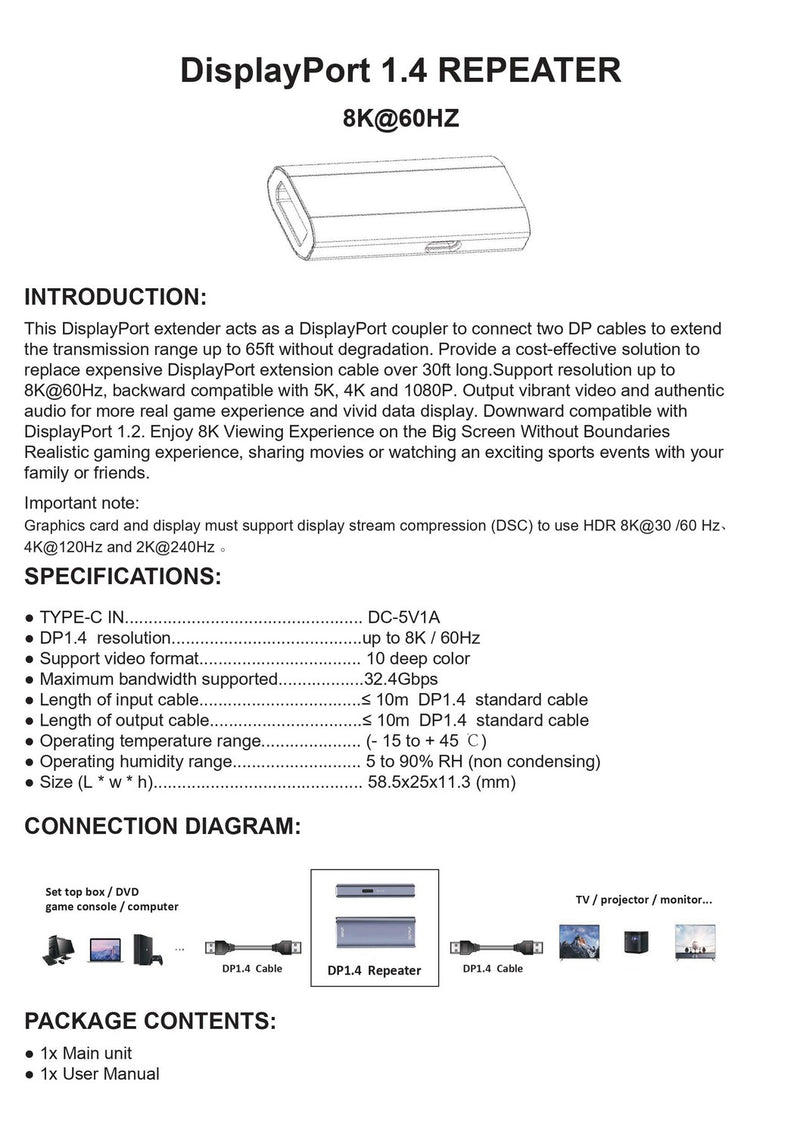

Specifications
- Inputs:
1x DisplayPort 1.4
- Outputs:
1x DisplayPort 1.4
- Supports resolutions up to 8K60Hz HDR
- Color format: RGB, 4:4:4, 4:2:2, 4:2:0
- Color depth: 10bpc
- Supports Display Stream Compression 1.2 and HDCP 2.2
- Supports bandwidth up to 32.4 Gbps and HBR3
- Maximum cable length:
10 meter input
10 meter output
- Powered by the supplied 5V mains cable
- No drivers required, plug and play
- Contents: signal amplifier, mains cable, manual
