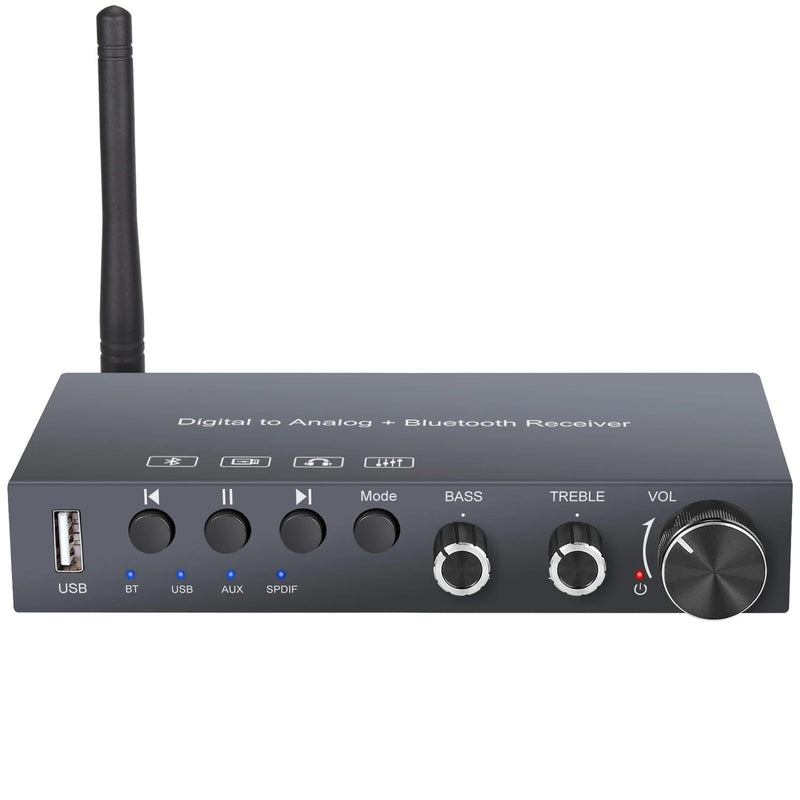

Digital to analog audio converter for home or professional use. It converts coaxial, digital Toslink, stereo or Bluetooth compatible signals to analog stereo audio signal. It is also a digital music player with USB memory that supports MP3, WAV, APE, FLAC and WMA formats.
The DAC SPDIF input only supports PCM and LPCM audio signals and does not support Dolby, DTS or other surround audio signals. Therefore, it is important that the digital audio output on your device is set to PCM / LPCM output. Otherwise the sound will be noisy / static.

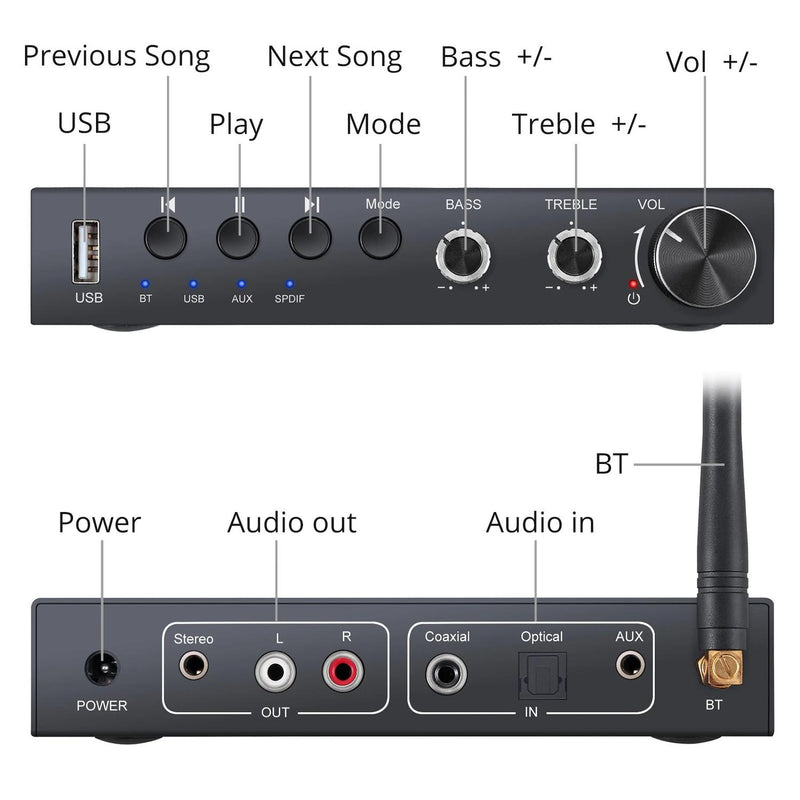

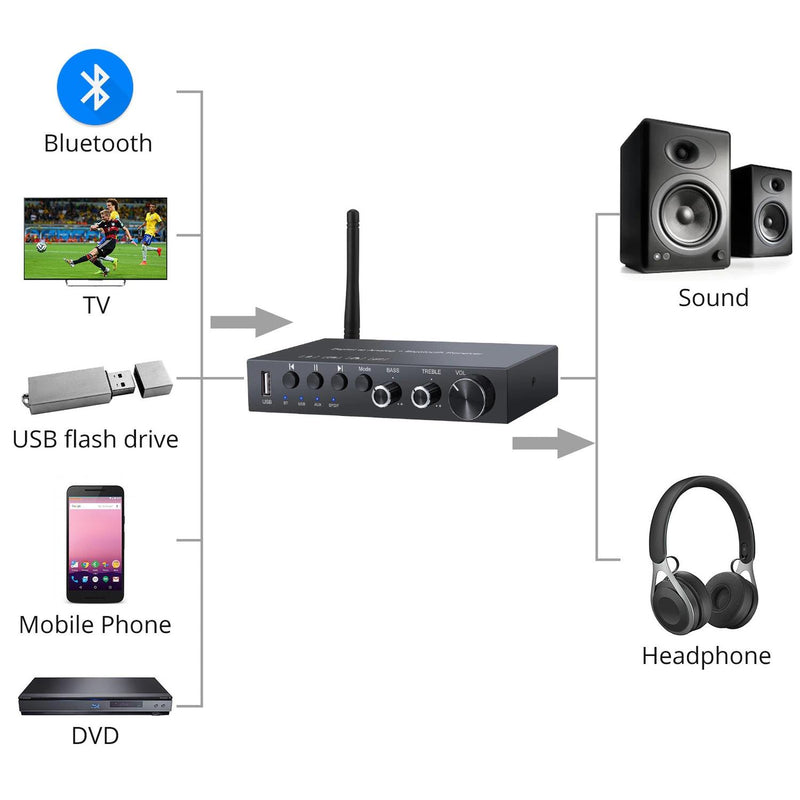

Input: Bluetooth compatible, USB, AUX, Coaxial, Toslink
Output: R / L stereo, headphones with 3.5 mm jack
Bluetooth compatible version: V5.0
Bluetooth compatible decoder: SBC, AAC
Bluetooth compatible protocol: A2DP V1.3.1, AVRCP V1.6, HFP V1.7, HSP V1.2
Bluetooth compatible distance: <10M
Optical / coaxial input audio format: PCM / LPCM
Optical / coaxial input sampling rate: 32, 44.1, 48, 96 and 192KHz
Headphone amplification power: 125mW x2 @ 32Q
Suggest headphone e-sistance interval: 16-3002
THD: <0.003%
Frequency response: 20Hz - 20KHZ
SN (Signal to Noise Ratio): 100DB
Operating temperature: 0 ° C to 70 ° C
Operating humidity: 10% to 85% relative humidity (no condensation)
Storage temperature: -10 ° C to + 80 ° C
MAX Power: 2.5W
Dimensions (L * W * H): 155 * 73.9 * 28.5mm
Net weight: 380g

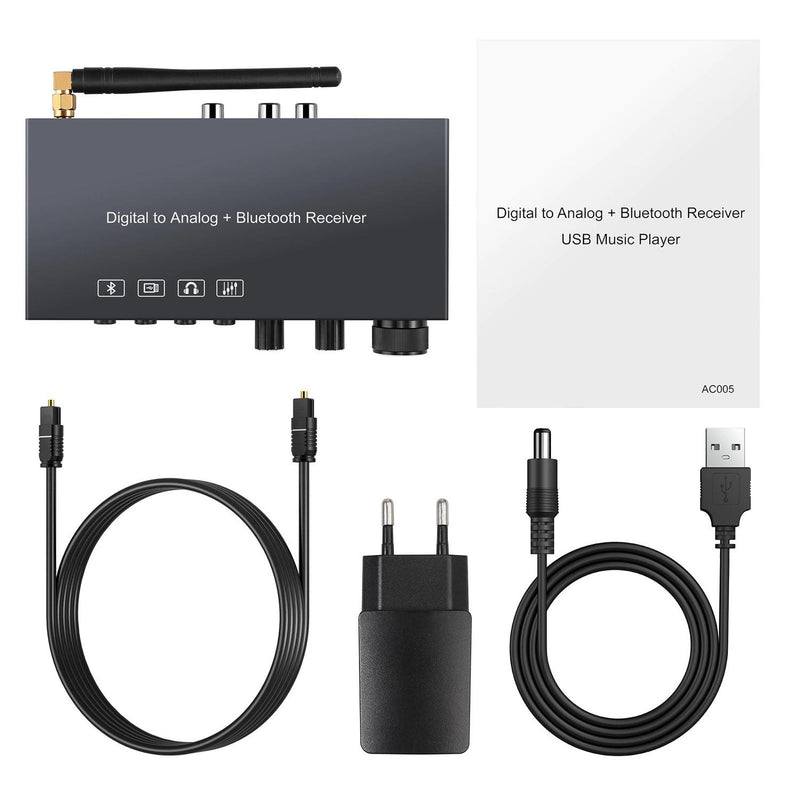

Content:
1 x digital to analog audio converter
1 x optical cable ?1m?
1 x USB power cable
1 x power adapter
1 x User Manual
