AV Access iDock M10 USB-C KVM-Switch Docking Station 2 to 2 for MacBook, Dual 4K HDMI Monitors, 1x Laptop + 1x PC, 100W Charging

Hover over the image to zoom in

AV Access iDock M10 USB-C KVM-Switch Docking Station 2 to 2 for MacBook, Dual 4K HDMI Monitors, 1x Laptop + 1x PC, 100W Charging

Name: AV Access iDock M10 USB-C KVM-Switch Docking Station 2 to 2 for MacBook, Dual 4K HDMI Monitors, 1x Laptop + 1x PC, 100W Charging
Brand: AV Access
SKU: KVM-183
Price: 380,00 EUR
Availability: InStock

AV AccessSKU:KVM-183

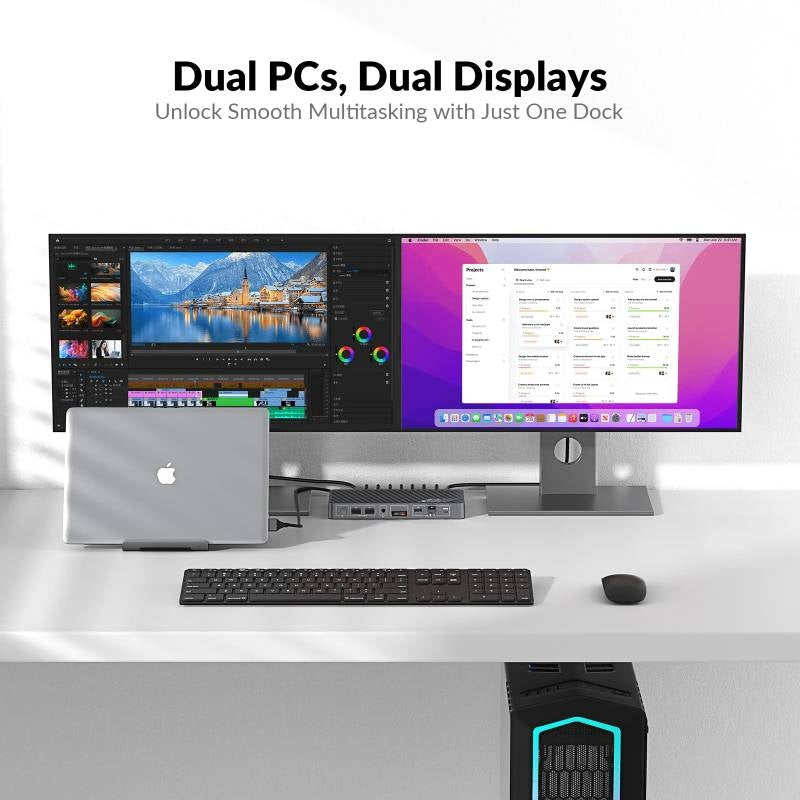

AV Access iDock M10 is a powerful 10-in-1 KVM docking station that allows you to connect both MacBook and desktop PC with dual 4K displays, high-speed connections, and up to 100W charging. Perfect for home offices, businesses, or creative workspaces where seamless switching between laptop and PC is required. With the press of a button, you can switch between a MacBook and a desktop, share all your devices, and keep your MacBook fully charged.

Specifications

Switch between 1 laptop and 1 desktop with one button

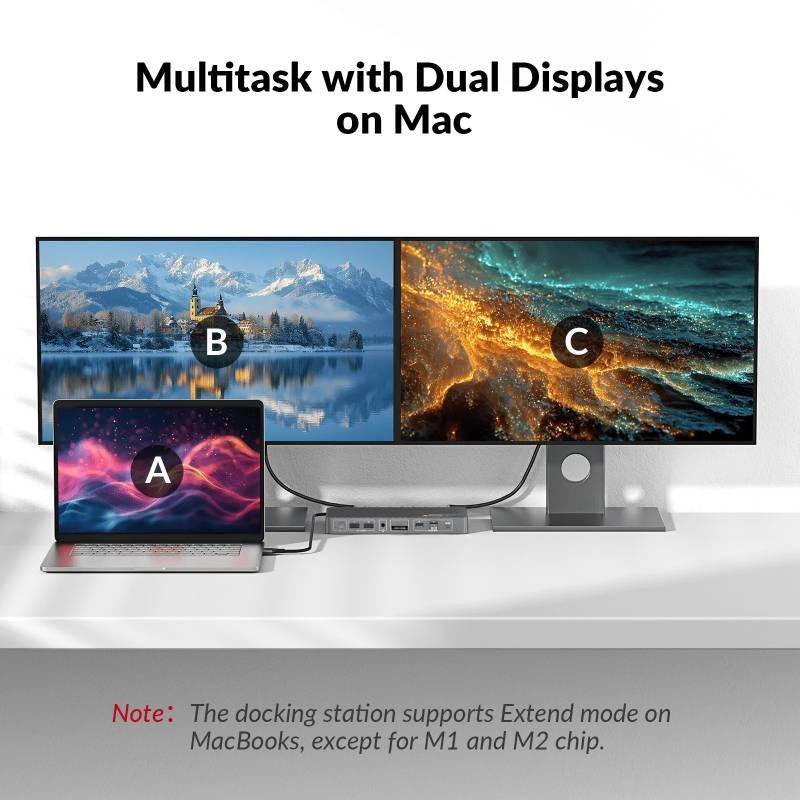

Supports two external 4K@60Hz displays (Dual Monitor Outputs)
Full Mac compatibility: supports MacBook Pro, Air, Mac mini, and Mac Studio

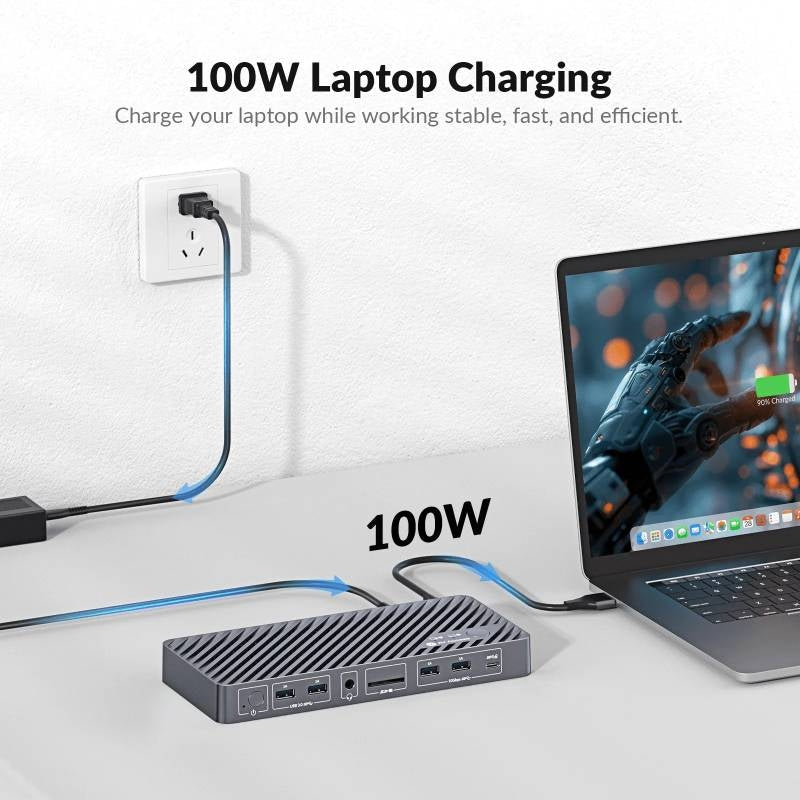

100W Power Delivery via USB-C – keeps your MacBook charged while in use
Supports high refresh rates: 1080P@240Hz/165Hz/144Hz, 1440P@144Hz, 4K@60Hz
EDID emulation – keeps window positions when switching
10-in-1 design – connect HDMI, DP, USB, SD card, LAN, and audio in one device
Stable internet connection with 1G LAN, shared between MacBook and PC
HDR support on USB-C In and HDMI In (not DP In)
Wake-up function via panel button or included remote control

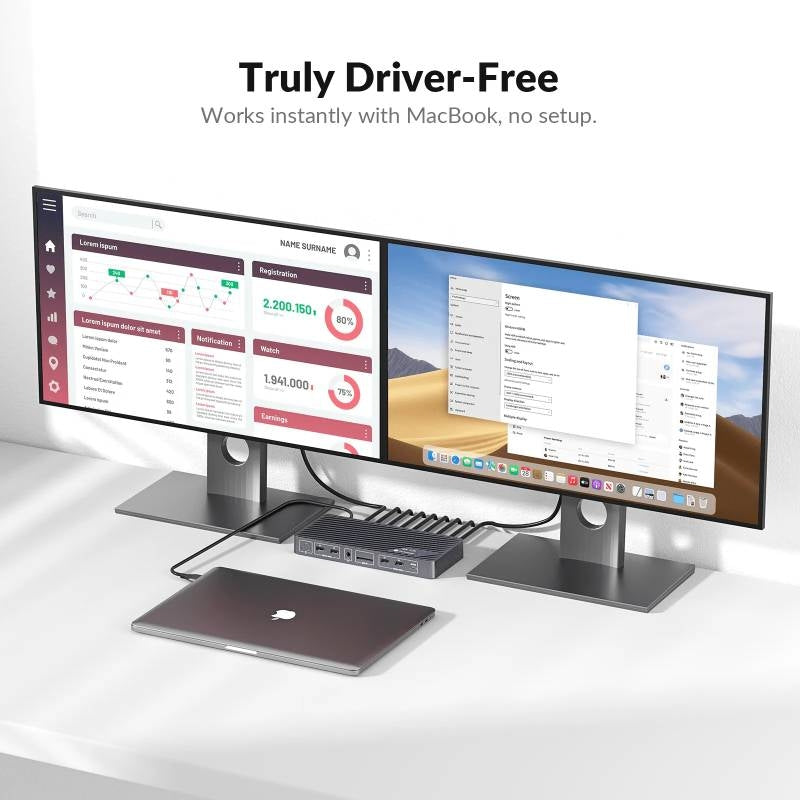

Plug & Play – no software or drivers required

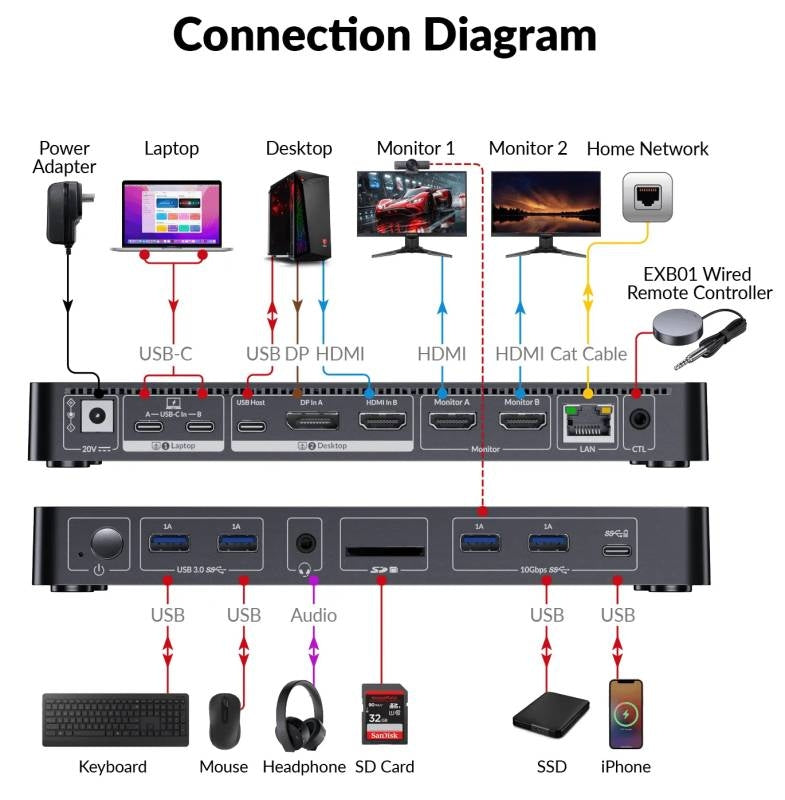

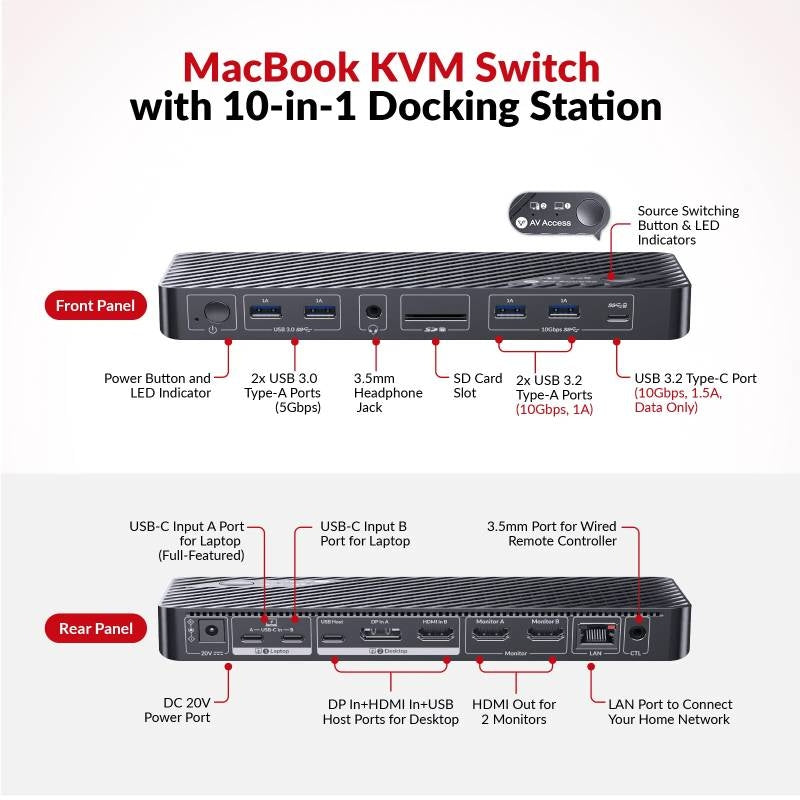

Ports

INPUT:

2× USB-C (100W PD, 10Gbps, 4K@60Hz video) for laptop
1× HDMI 2.0b (4K@60Hz, HDCP 2.2) for PC
1× DP 1.2a (4K@60Hz, HDCP 2.2) for PC
1× USB-C to USB-A for PC data connection

OUTPUT:

2× HDMI 2.0b (4K@60Hz)
2× USB-A 3.2 (10Gbps 1A)
2× USB-A 3.0 (5Gbps 1A)
1× USB-C (10Gbps 1.5A) data+charging only
1× SDXC card reader (up to 2TB, 104MB/s)
1× RJ-45 LAN (1G)
1× 3.5mm Headphone Jack
1× 3.5mm port for wired remote control (EXB01)

Technical Information

Video Inputs: USB-C (up to 4K@60Hz), HDMI 2.0b (4K@60Hz), DP 1.2a (4K@60Hz)
Video Outputs: 2× HDMI 2.0b (4K@60Hz, EDID emulation)
USB: 2× USB 3.2 (10Gbps 1A), 2× USB 3.0 (5Gbps 1A), 1× USB-C (10Gbps 1.5A Data)
Network: 1G Ethernet RJ45 (shared between PC & MacBook)
Card Reader: SDXC, up to 2TB, 104MB/s
Audio:
- HDMI/DP In/HDMI Out: Full support according to HDMI 2.0b specification, includes PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
- USB-C In: Full support for multichannel audio including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
- 3.5mm Headphone Jack: Stereo
Power: Max 113.1W consumption
Dimensions: 220 × 25.2 × 100 mm
Weight: 0.34 kg

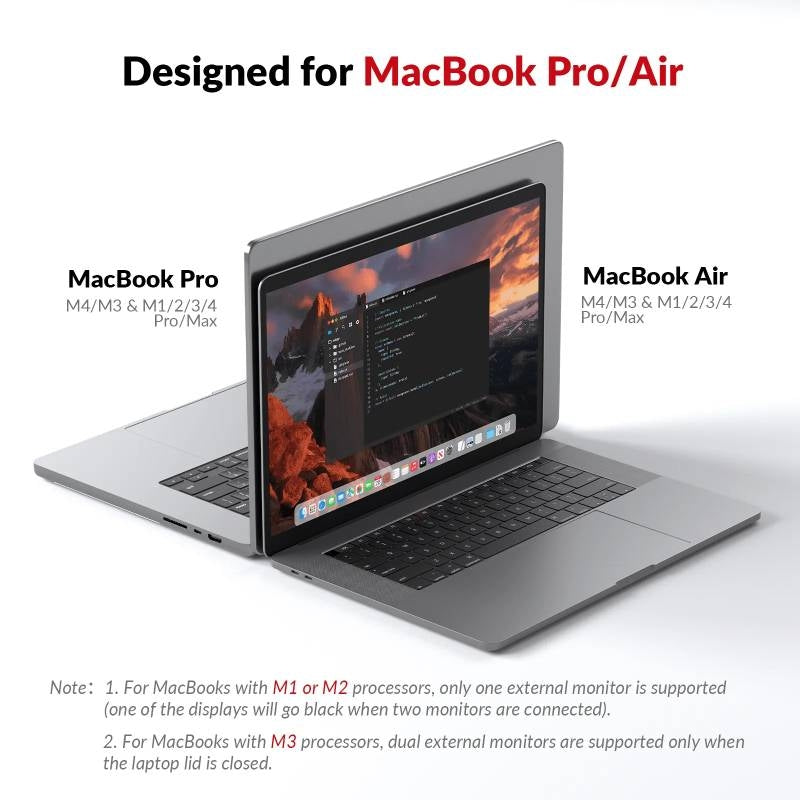

Compatibility

macOS (incl. M1/M2/M3/M4 Pro & Max for dual monitors)
Windows / PC
For MacBooks with M1/M2 only 1 external display is supported
For MacBooks with M3, dual monitors are only supported with lid closed

Contents

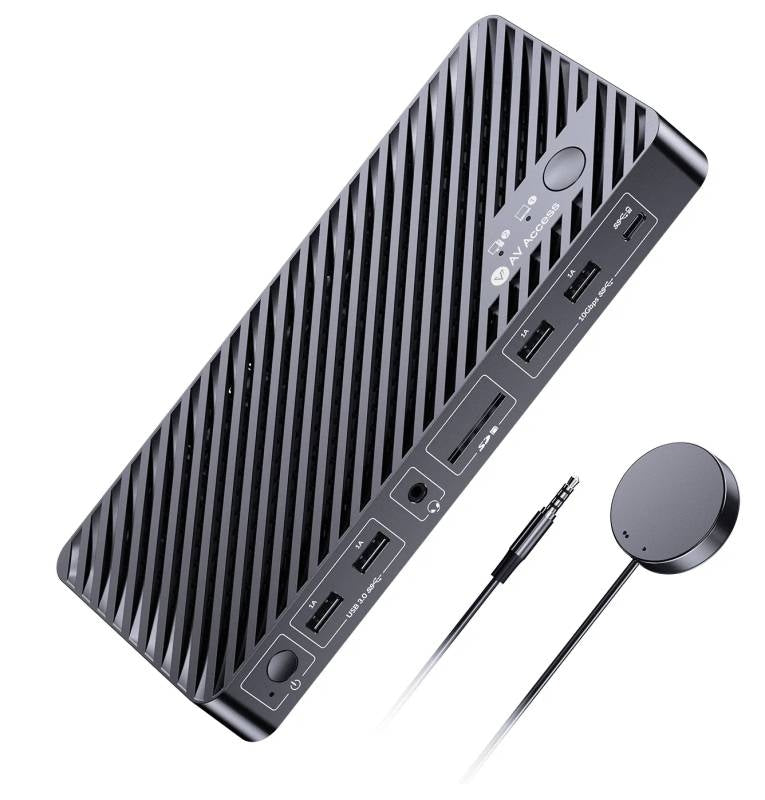

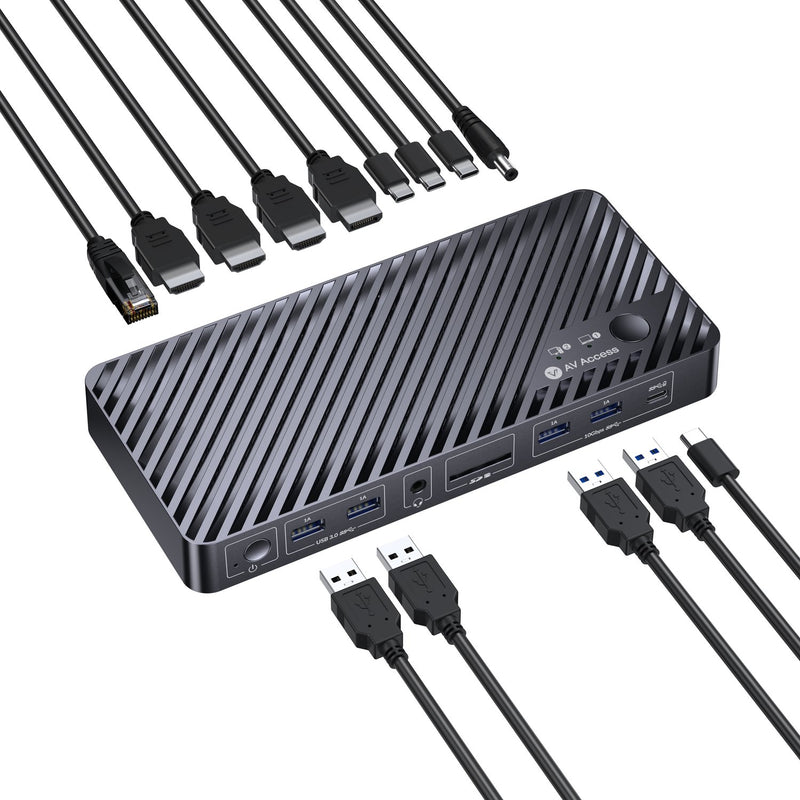

1× iDock M10 KVM Dock Switcher
1× HDMI 2.0 cable (1.5 m)
1× DP 1.2a cable (1.5 m)

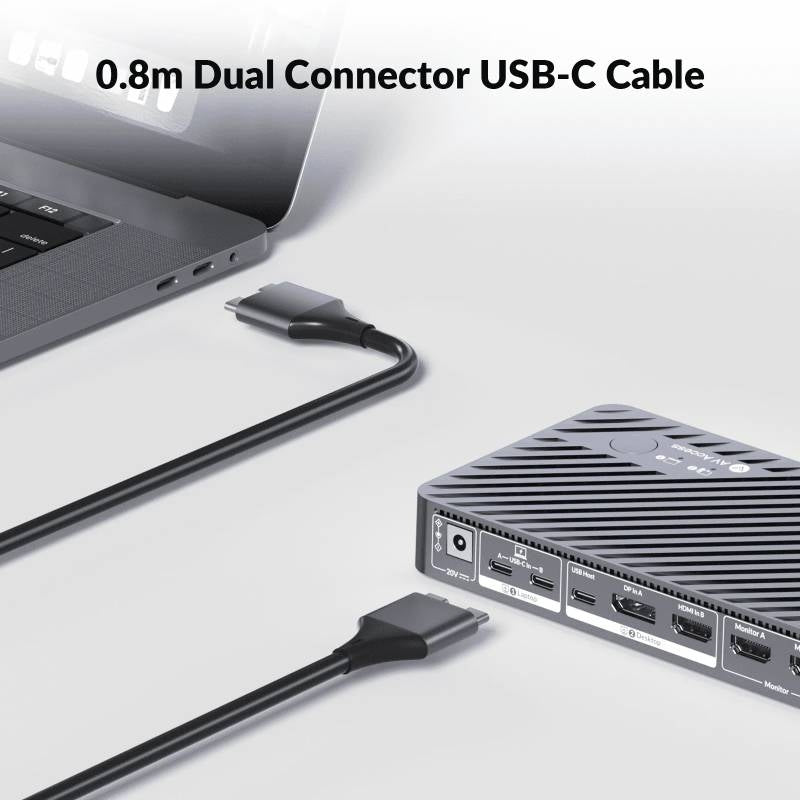

1× Dual USB-C to Dual USB-C cable (USB 3.2 Gen2, 0.8 m)
1× USB-A to USB-C cable (1.8 m)
1× Remote Control (EXB01)
1× Power Adapter (DC 20V/6A)
1× User Manual
