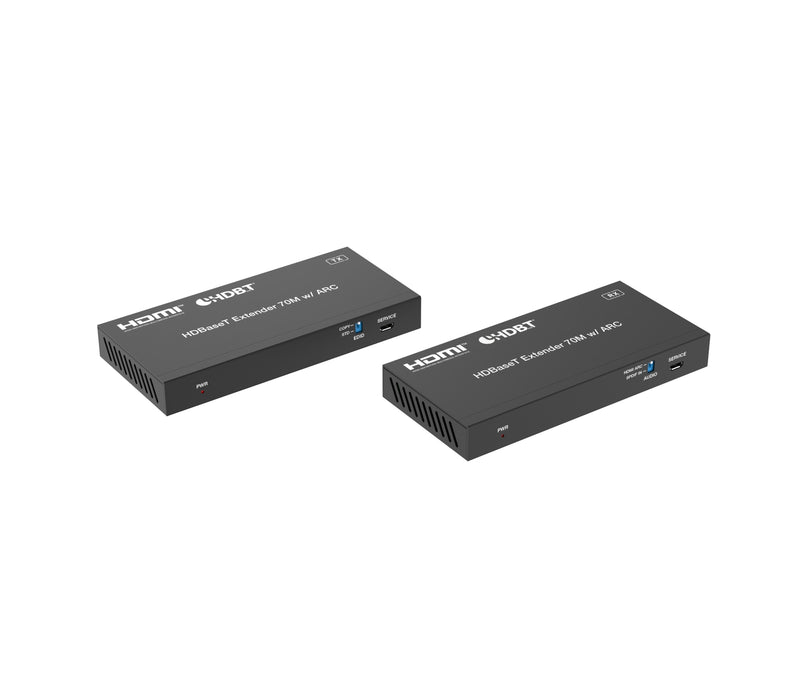

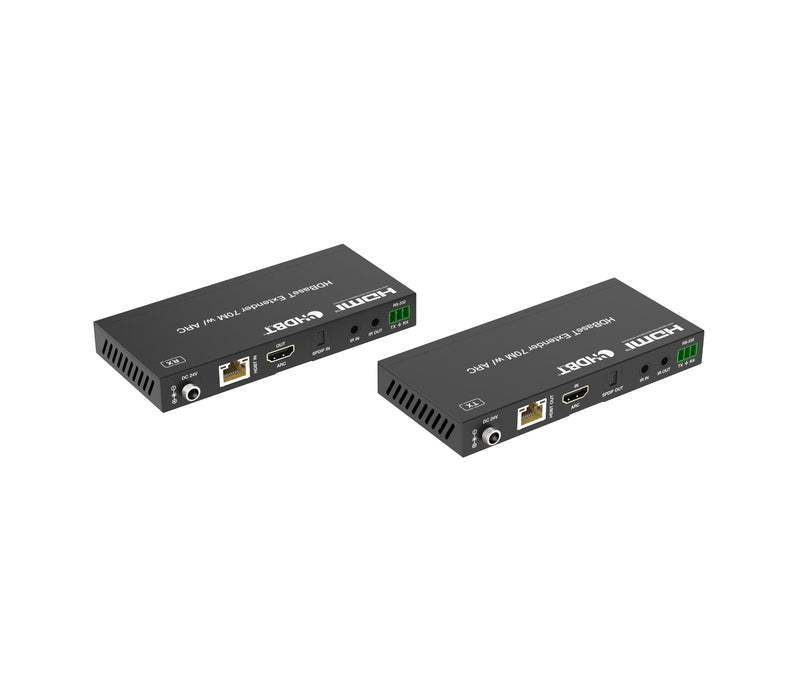

This NÖRDIC HDBaseT extender enables transmission of HDMI signal, bi-directional IR control, RS-232 communication, and ARC audio signal up to 70 meters over a single CAT5e/6 cable. The HDMI signal is converted to an HDBaseT signal for efficient and stable long-distance transmission. The product supports 4K@60Hz, HDR formats, and features PoC support, meaning only one unit requires power. Ideal for video conferencing, AV distribution, and other professional applications.
Specifications
- HDMI Standard: HDMI 2.0b
- HDCP Standard: HDCP 2.2
- Video Bandwidth: 18 Gbps
- Video Resolution: Up to 4K@60Hz RGB/YCBCR 4:4:4
- Color Format: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Color Depth:
- 8/10/12 bit (1080p)
- 8 bit (4K60)
- 8/10/12 bit (4K24/30)
- HDR Support: HDR, HDR10, HDR10+, Dolby Vision, HLG
- Audio Formats HDMI: LPCM 7.1, Dolby True HD, DTS-HD Master
- Audio Formats Optical: Dolby 5.1, DTS 5.1, PCM 2.0
- Transmission Distance: Up to 70 m via CAT5e/6
- RS-232: Full duplex via Phoenix connector
- IR Control: Bi-directional, 20K–60KHz
- EDID Management: Advanced via DIP switch
- ARC Support: Yes
- PoC Support: Yes, bi-directional
- Power Supply: DC 24V/1A
- Power Consumption: Max 9.6W
- Operating Temperature: 0–40 °C
- Storage Temperature: -20–60 °C
- Humidity: 20–90 % RH (non-condensing)
- Dimensions: 140 x 65 x 18 mm (transmitter and receiver)
- Weight: Transmitter 235 g, Receiver 239 g
- Housing: Black metal
Connections

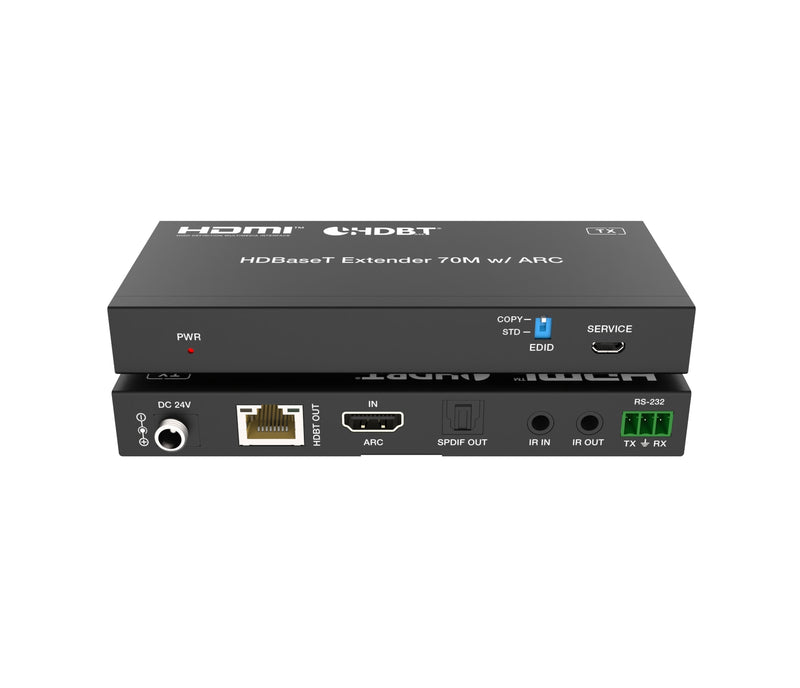

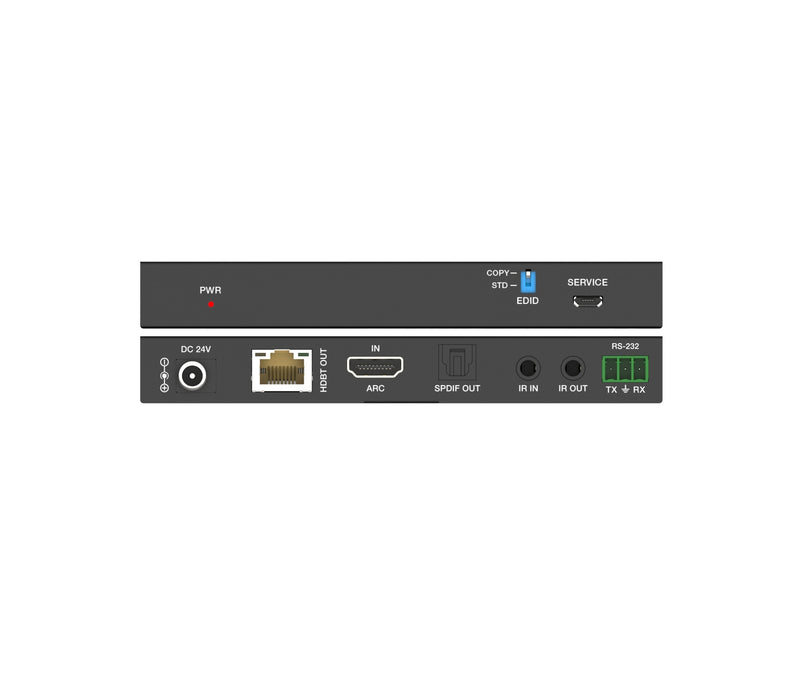

- Transmitter:
- Input: 1 x HDMI IN (Type A, 19-pin)
- Output: 1 x HDBaseT OUT (RJ45), 1 x SPDIF OUT
- Ports:
- 1 x RS-232 (3-pin Phoenix)
- 1 x SERVICE (Micro-USB)
- 1 x IR IN (3.5 mm)
- 1 x IR OUT (3.5 mm)

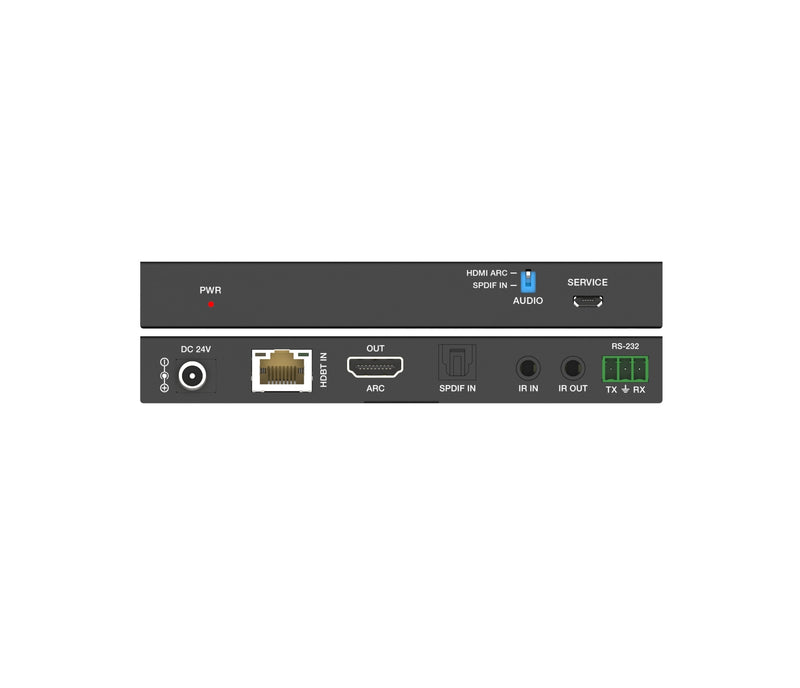

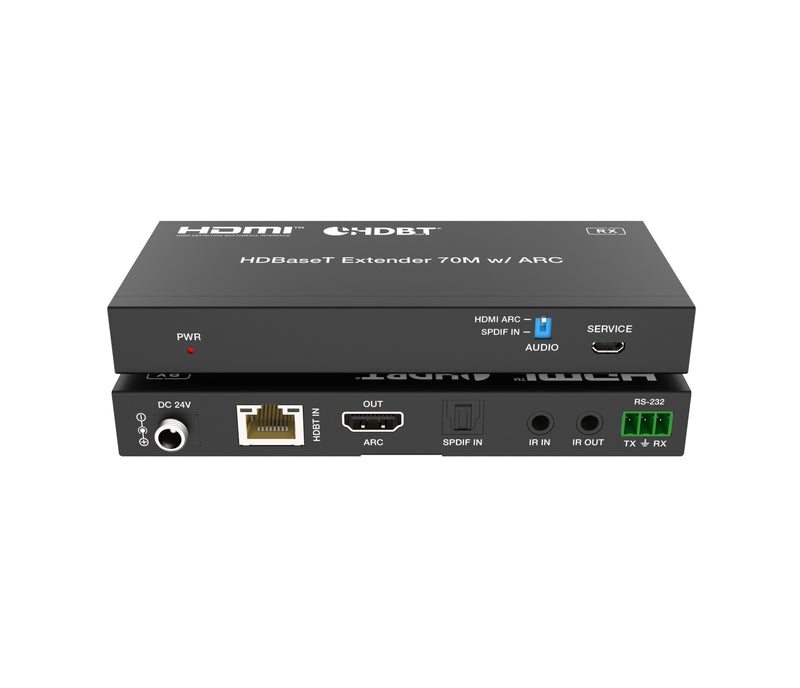

- Receiver:
- Input: 1 x HDBaseT IN (RJ45), 1 x SPDIF IN
- Output: 1 x HDMI OUT (Type A, 19-pin)
- Ports:
- 1 x RS-232 (3-pin Phoenix)
- 1 x SERVICE (Micro-USB)
- 1 x IR IN (3.5 mm)
- 1 x IR OUT (3.5 mm)
Features
- Transmits HDMI, IR, RS-232 and ARC via a single CAT5e/6 cable
- Supports 4K@60Hz with HDR and Dolby Vision
- Bi-directional IR control for both source and display devices
- Audio de-embedding via SPDIF
- EDID management via DIP switches
- Compact metal housing for professional installation
- Only one power adapter required thanks to PoC function
What is HDBaseT?
HDBaseT is a global standard for the transmission of ultra-high-definition video, audio, Ethernet, control signals (IR, RS-232), USB and power over a single network cable (CAT5e/6/6a). It enables long-distance transmission without compression or delay and is widely used in professional AV installations, corporate environments, and digital signage solutions.
Contents
- 1 x HDBaseT HDMI Extender – Transmitter
- 1 x HDBaseT HDMI Extender – Receiver
- 1 x IR blaster (1.5 m)
- 1 x IR receiver (1.5 m)
- 2 x RS-232 Phoenix connectors
- 4 x Mounting brackets
- 8 x Screws
- 1 x Power adapter 24V/1A
- 1 x User manual
