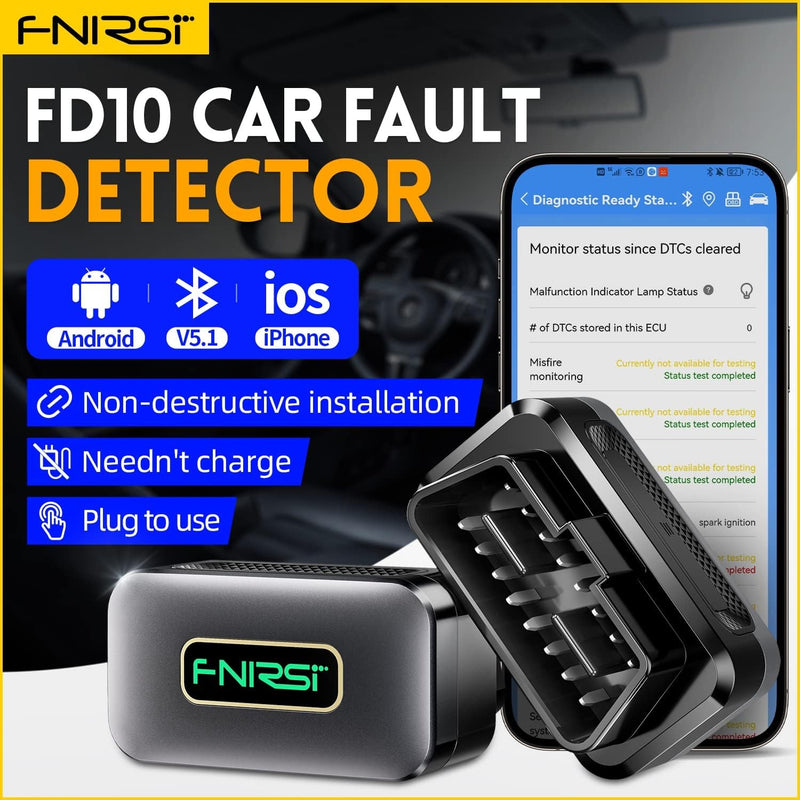

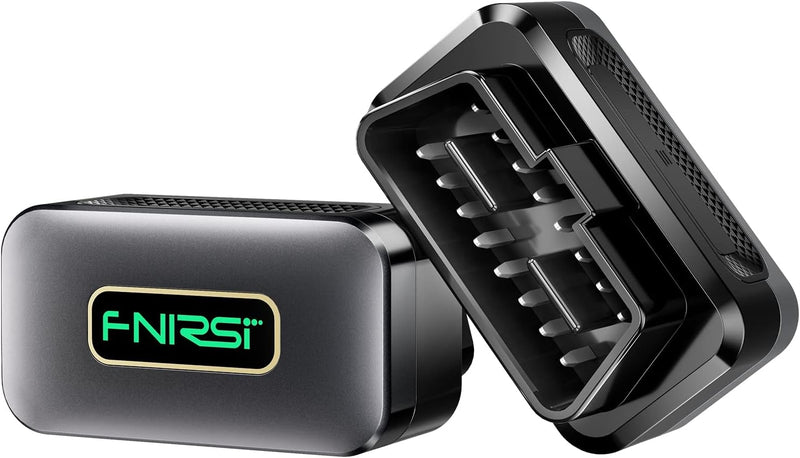

FNIRSI FD10 OBD2 is a small tool for diagnosing and analyzing vehicle faults, monitoring car sensors and knowing the vehicle's driving status in real time. It can help you find out why the check engine light is on and solve simple car problems yourself, save time and money! FD10 must be used with third-party APP, Bluetooth 5.1, compatible with IOS & Android system, supports 24 languages, you can download the APP (YMOBD) directly from AppStore or Google Play, and then you can access a whole new world of information about your vehicle via your mobile phone.
FD10 has a large selection of functions; detect/clear fault codes and explain the meaning of fault codes, read specific vehicle information, fault indicator detection, full vehicle detection at the touch of a button, vehicle specific sensor detection, diagnostic readiness, ECU storage of data when the fault code is displayed, vehicle trip analysis, vehicle performance test, vehicle annual inspection simulation .
NOTE: FNIRSI FD10 OBD2 only supports petrol cars after 2006, not diesel cars and electric cars.
Technical Specifications
- Interface: OBD II
- Bus support: CAN_BUS / K_LINE / L_INE
- OBD protocol:
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO 14230-4 KWP (fixed init, 10.4 Kbaud)
ISO 15765-4 CAN (11 bit ID, 500 Kbaud)
ISO 15765-4 CAN (29 bit ID, 500 Kbaud)
ISO 15765-4 CAN (11 bit ID, 250 Kbaud)
ISO 15765-4 CAN (29 bit ID, 250 Kbaud)
- Effect: ≤ 1W
- Voltage: 8V-28V
- Bluetooth version: 5.1
- Dimensions: 49x26x33 mm
- Weight: 40g
- Contents:
FD10
